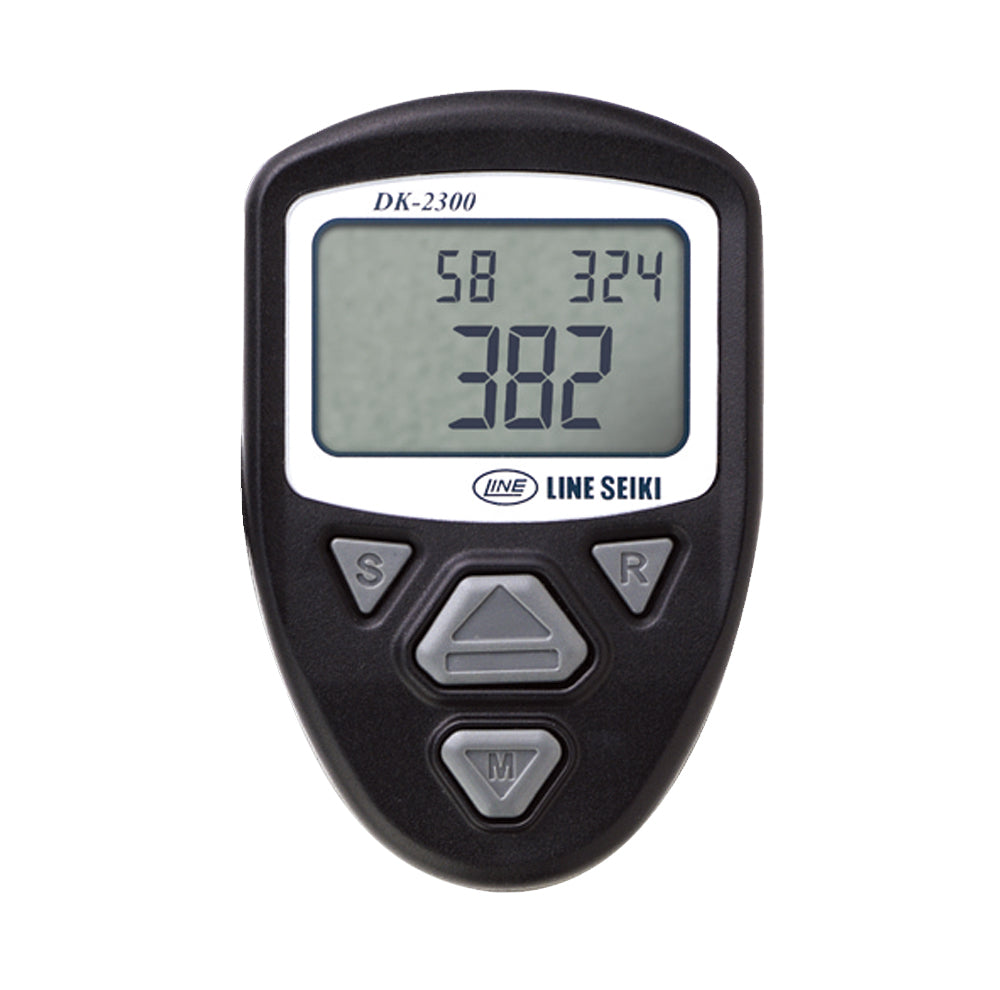

DK-2300 (Multi-Function) Four In One Electronic Tally Counter

High-quality, durable, and designed for precision. The DK-2300 is an advanced multi-functional electronic hand tally counter featuring 4 selectable counting modes in one compact device. With a clear LCD display, buzzer feedback, and memory options, it’s built for professional use where accurate and flexible tallying is essential.

• 4.5-digit main display (7-segment LCD, 10mm height)
• 4-digit sub-display (7-segment LCD, 5mm height)
• Multiple counting modes (Up/Down, Dual Counter, 3 Counters, Memory Counter)
• Lightweight design – approx 1.5 oz (with battery)
• Powered by replaceable 3V CR2032 battery (approx. 3 years life*)
• CE and RoHS compliant
• Durable Japanese electronics

Quantity Discounts: For wholesale orders over $1000 please email contact@tallycounterstore.com or call 845-402-8093 for wholesale pricing.

How It Works

The DK-2300 is a multifunctional tally counter with four different modes, including the ability for the count to go to negative numbers, selectable by adjusting the DIP switch:

1. Up/Down Counter – Count up or down from -9999 to 9999. Store up to two previous count values temporarily.
2. Two Counter Tally – Operate Counter A and Counter B independently, then view their sum or difference instantly.
3. Three Up/Down Counters – Manage three independent counters in one unit. Switch between them easily with the Shift button.
4. Counter with Memory – Store up to 59 values in memory for recall later. Perfect for tasks requiring reference to multiple saved counts.

The unit also includes a built-in buzzer, which can be switched on or off for audio confirmation of inputs.

Safety & Durability

• Operating temperature: 5°C to +40°C (85% RH, non-condensing)
• Storage temperature: -10°C to +60°C
• Designed for long-lasting reliability in professional environments
• Warning: All stored data will be erased when the battery is replaced or depleted

Battery Replacement

When the display becomes dim or disappears, replace the battery:

1. Remove the screw at the back of the unit and open the cover.
2. Slide out the old CR2032 battery and lift it from the holder.
3. Insert a new battery, ensuring correct polarity.

Please Note

• This unit does not retain memory when the battery is removed or low.
• Avoid exposure to water, direct sunlight, dust, or high humidity.
• Do not drop, disassemble, or modify the device.

For more information and full specifications, please refer to the DK-2300 Instruction Manual.

*1 Take note that the unit is shipped with a battery installed and battery
life may be shorter than the indicated specification. However, if a new battery
is installed, battery life will be according to use condition.
*2 Strap and Battery included.
